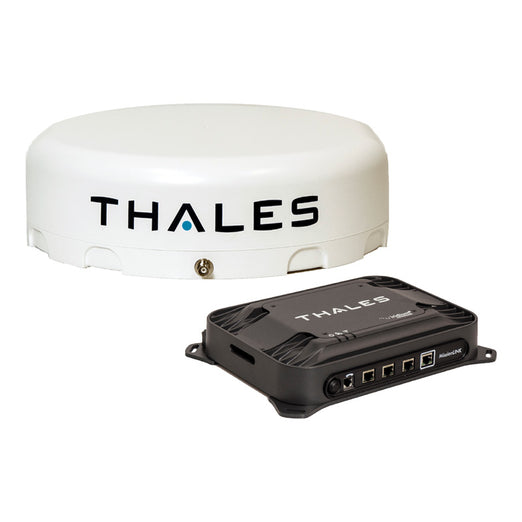

Thales MissionLINK 700

Name: Thales MissionLINK 700
Brand: Thales
SKU: IRID-CERT-THA-MISLINK
Price: 5995.00 USD
Availability: InStock

Thales MissionLINK 700 is an Iridium Certus Land 700 terminal offering fast downlink speeds (up to 700 kbps) and reliable satellite internet for vehicles or expedition use across any terrain.

FREE
SHIPPING

30-DAY
GUARANTEE

**Custom Order - 1-2 week lead time**

The Thales MissionLINK 700 is an Iridium Certus® Land 700 terminal that can provide internet access up to 700 kbps (down) / 352 kbps (up) at any land based on the global -- even in mountainous terrain that gives other satellite networks trouble. An intuitive built-in firewall and PoP based IP Data monitoring included with your Outfitter Satellite service plan help you with control of your IP data usage budget.

Voice Communications

The MissionLINK 700 has three voice lines with superb audio quality and low latency. Voice calling services can be accessed wirelessly using the Zoiper phone app on most iOS or Android smartphones. Up to three SureLINK IP Handsets (not included) can also be used with the MissionLINK if a hardwired phone is necessary. Finally, an RJ-14 phone port on the MissionLINK can support conventional POTS phone equipment. Individual lines can be configured as Standard lines that can initiate and receive calls or as Crew lines (that use prepaid scratch cards for making outbound calls). Standard lines can be configured with an Optional US Number for a small monthly charge.

In-Vehicle and Fixed-Site Applications

The Thales MissionLINK is suitable for fixed-site or land-vehicle applications. Our standard kit comes with a removable magnetic-mount kit. Optional pole-mount kits are available with antenna cables up to 100 feet long.

Features

Built-in 802.1 1b/g Wi-Fi access point
Multiple user capability
Easy to use interface, all functionality available at a distance
Single cable antenna with IP 67 Ingress Protection rating against water and dust intrusion
4G LTE and Iridium Push-to-Talk ready
Location tracking

Specification

Model	Thales MissionLINK 700
Type	Fixed & Vehicular Satellite Broadband Terminal
Satellite Network	Iridium Certus® 700
Coverage	100% Global (Including Polar Regions)
Standard IP Data	Up to 704 kbps Download / 352 kbps Upload
Streaming IP	Up to 256 kbps
Voice Services	Up to Three Simultaneous Voice Lines
Voice Interface	RJ-14 POTS
Wi-Fi	Integrated 802.11 b/g Wi-Fi Access Point
Connected Devices	Up to 12 Simultaneous Devices
Ethernet Ports	3 × RJ45 LAN (PoE Class 2) & 1 × RJ45 WAN
GPS	Integrated GNSS Location Tracking Services
Routing	Built-in Preferred Routing Switch for Cellular, VSAT & Satellite Networks
Applications	Voice, Broadband Data, Telemedicine, Fleet Management, Tracking & Remote Operations
Power Supply	10–32 VDC Input (12V Nominal)
Power Consumption	40W Typical (Standby), 56W Transmit, 120W Maximum Startup
Terminal Dimensions	305 × 229 × 76 mm (12 × 9 × 3 in)
Terminal Weight	3.4 kg (7.5 lbs)
Antenna Dimensions	356 mm Diameter × 102 mm Height
Antenna Weight	2.8 kg (6.2 lbs)
Ingress Protection	Terminal: IP31 Antenna: IP66
Durability	MIL-STD-810G
Operating Temperature	-40°C to +55°C
Included Accessories	Terminal Unit, Active Broadband Antenna, Vehicle Mounting Hardware, Wi-Fi Antenna, Ethernet Cable, DC Power Harness & User Documentation

Downloads

*Pricing on this website is only valid until our current inventory is exhausted. Service contract is required for the pricing listed on this page. Online activation is not available.
