Premium Marine Communication for Demanding Environments

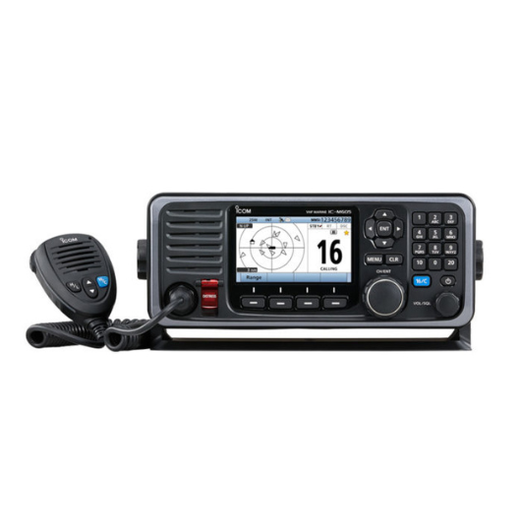

The ICOM M605 25W VHF Rear Mic Connector (US) is a flagship fixed-mount marine VHF radio engineered for professional-grade communication, exceptional audio clarity and seamless integration with today's connected vessels. Featuring a vibrant 4.3-inch colour TFT display, integrated GNSS receiver, Class D DSC, NMEA 2000 networking and advanced remote station capabilities, the M605 is designed for boaters who demand uncompromising performance both offshore and in busy coastal waters.
Whether installed aboard a fishing vessel, sailing yacht, motor cruiser or commercial workboat, the M605 delivers dependable 25-watt transmission power and intuitive operation, making communication safer, clearer and more efficient.
Built-in GNSS for Enhanced Safety
The M605 features an integrated GNSS receiver supporting GPS, GLONASS and SBAS satellite systems, providing fast, accurate positioning for navigation and emergency communications. With vessel position continuously available, Class D Digital Selective Calling (DSC) distress alerts automatically transmit your location to nearby vessels and rescue services when every second counts.
Its dedicated DSC receiver continuously monitors Channel 70 while you communicate on another channel, ensuring emergency calls are never missed.
Exceptional Audio with Active Noise Cancelling
Marine environments are rarely quiet, which is why the M605 incorporates Active Noise Cancelling technology to significantly reduce engine and wind noise during both transmission and reception. Combined with its powerful commercial-grade receiver and 15W external speaker output, conversations remain exceptionally clear even in demanding offshore conditions.
The radio also includes Last Call Voice Recording, automatically storing up to two minutes of received audio so important messages can be replayed if missed.
Expandable for Complete Vessel Control
One of the M605's biggest strengths is its flexibility. The rear microphone connector supports the supplied HM-205RB speaker microphone, while the radio can also be expanded with up to three optional RC-M600 Command Heads and/or HM-195 COMMANDMIC™ remote microphones, providing full radio control from multiple locations around the vessel.
This makes the M605 an ideal solution for larger boats with flybridges, enclosed cabins or multiple helm stations, allowing seamless communication wherever you are onboard.
Advanced Networking with NMEA 2000
Designed for integration with modern marine electronics, the M605 supports both NMEA 2000 and NMEA 0183/-HS networking. It can exchange GNSS position data, AIS information, DSC call details, radio status and PGN data with compatible chartplotters, multifunction displays and navigation systems, helping create a fully connected helm.
For users requiring additional privacy, the optional UT-112 Voice Scrambler provides secure voice communications with 32-tone scrambling capability.
Built for Professional Marine Use
Engineered to perform in harsh marine environments, the M605 features an IPX8 waterproof rating, allowing it to withstand immersion in one metre of water for up to 60 minutes. ICOM's AquaQuake™ technology clears water from the speaker after heavy spray or rain, while the large colour display offers both day and night viewing modes for excellent visibility in any lighting conditions.
Additional features including a 30W two-way hailer, automatic foghorn, Dual and Tri-Watch, weather alerts and instant Channel 16 access make the M605 one of the most capable fixed-mount marine radios available for serious boaters and marine professionals.
Specification
| Model |
ICOM M605 Rear Mic Connector (US) |
| Type |
Fixed Mount Marine VHF Radio |
| Display |
4.3" Colour TFT LCD |
| Transmit Power |
25W / 1W Selectable |
| GPS Receiver |
Integrated GNSS (GPS, GLONASS & SBAS) |
| Digital Selective Calling |
Class D DSC |
| Networking |
NMEA 2000 & NMEA 0183/-HS |
| AIS Support |
Optional Internal AIS Receiver (UX-251) |
| Channels |
USA, International, Canadian & NOAA Weather Channels |
| Frequency Range |
TX: 156.025–161.600 MHz RX: 156.050–163.275 MHz |
| Waterproof Rating |
IPX8 (1m for 60 minutes) |
| Noise Cancelling |
Active Noise Cancelling |
| Voice Recording |
Last Call Voice Recording |
| Audio Output |
15W External Speaker Output |
| Hailer |
30W Two-Way Hailer with Automatic Foghorn |
| Remote Control |
Supports up to 3 RC-M600 Command Heads and/or HM-195 COMMANDMIC™ units |
| AquaQuake™ |
Yes |
| Power Supply |
13.8V DC (11.7–15.9V) |
| Dimensions |
250 × 114 × 93.5 mm |
| Weight |
Approx. 1.51kg |
| Operating Temperature |
-20°C to +60°C |
| Included Accessories |
HM-205RB Speaker Microphone, GNSS Antenna (UX-241), DC Power Cable, Mounting Bracket Kit, OPC-2384 Adapter Cable |
