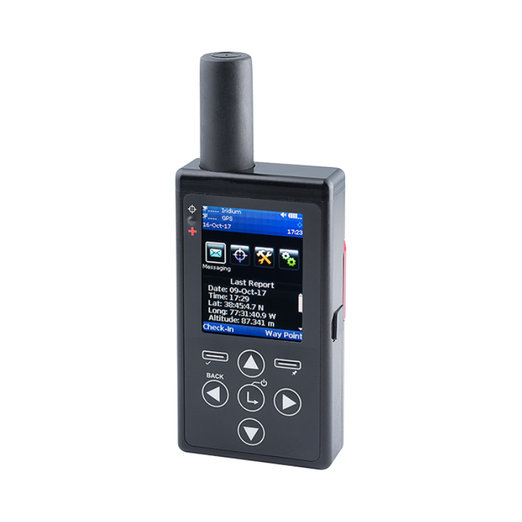

The SHOUT Nano is a compact, handheld satellite device that combines two-way messaging with global personal tracking. Operating on Iridium’s Short Burst Data (SBD) service, it provides GPS-based location reporting, two-way status updates, text messaging, and emergency alert notifications.
Designed for efficiency, the Nano draws less than 35µA in sleep mode. Its 1.95 A-Hr rechargeable Li-Ion battery supports hourly position reporting for up to two months (around 1,200 transmissions). A high-resolution color LCD with on-screen keyboards enables free-text, canned, or mixed messaging, with intuitive icon-based menus for quick navigation. The device can also be configured to wake automatically and transmit reports to a monitoring center. For emergencies, a dedicated 911 button delivers immediate alert notifications. Data transmissions can be sent in standard format, secured with 256-bit AES encryption, or encrypted using PECOS formats with Brevity codes.
Key Features:
Normal Tracking: Automatically wakes and sends position reports at user-defined intervals, from continuous to once every seven days.
Emergency Alert: A guarded 911 button sends alerts to a monitoring center, enabling two-way communication for emergency response.
Free-Text Messaging: Compose messages using three different on-screen keyboard layouts.
Canned Text Messaging: Send predefined short codes to reduce bandwidth use.
Waypoint Tracking: Record and transmit waypoints (landmarks of interest) for later retrieval.
Check-In: Quickly send a check-in message with a single soft key.
| Service | SBD 0 | SBD 12 | SBD 17 | SBD 30 |
|---|---|---|---|---|
| Activation Fee | FREE | $40.00 | $40.00 | $40.00 |
| Monthly Fee | $17.00 | $20.00 | $25.00 | $42.50 |
| Minimum Term | 1 Month | 1 Month | 1 Month | 1 Month |
| Suspended Monthly Fee | $2.50 | $2.50 | $2.50 | $2.50 |
| Minimum Billable Message Size | 30 Bytes | 10 Bytes | 10 Bytes | 10 Bytes |
| Inclusive Bytes per Month | 0 Bytes | 12,000 Bytes | 17,000 Bytes | 30,000 Bytes |
| Overage (per 1,000 Bytes) | $1.50 | $1.50 | $1.75 | $1.50 |
| SBD Registration / Mailbox Check | $0.05 | $0.05 | $0.05 | $0.05 |
| Dimensions | 4.0″ × 2.2″ × 0.8″ |
|---|---|
| Weight | 6.5 oz |
| Battery Type |
|
| I/O Interface | Standard USB |
| Software Interface | AT Commands through USB |
| Operating Temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating Humidity | < 75% RH |
| Operating Frequency | 1616 to 1626.5 MHz |
| GPS Frequency | 1575.42 MHz (L1 carrier) |
